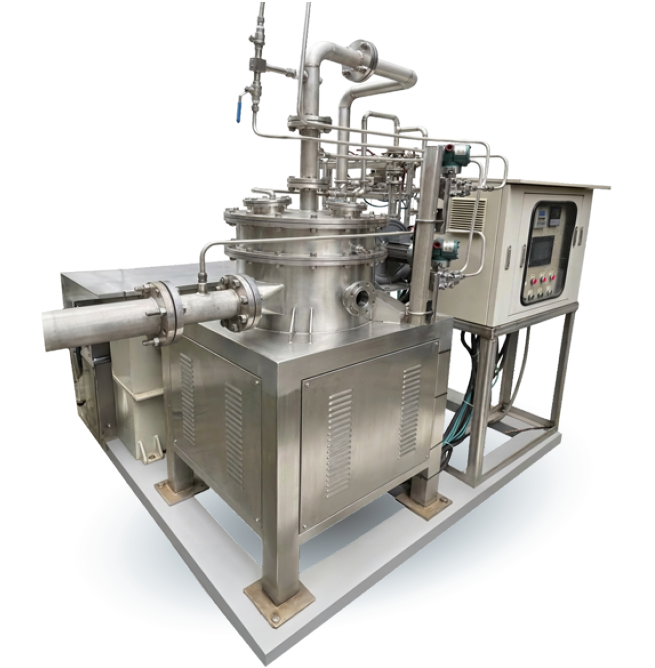

HG Series
The HG series adopts a multi-layer absorption design (2–3 layers). The rotor is shaft driven. Through proprietary internal geometry and internal impeller blade design, generates self-induced suction during operation. Leveraging high rotational speeds, incoming liquid droplets are stretched and finely fragmented, thereby increasing the gas–liquid interfacial area and enhancing mass-transfer and reaction efficiency.
Features
Low energy consumption
The blower package can be configured according to inlet flue gas pressure. If choose no blower type, the power consumption can be lower than 1 kW / hr, depending on site and machine conditions.Versatile connectivity
Supports multiple sensing devices for easy integration and expandable application scenarios.Environment
On-site CO₂ assessment
Contact us to evaluate your facility and CO₂-reduction needs.Process versatility

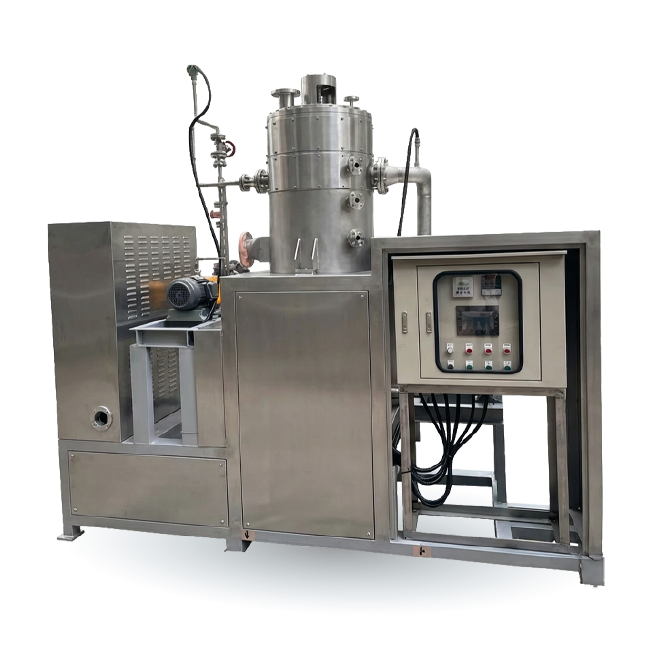

Supports absorption/desorption, dewatering, and high-efficiency material mixing.MG Series
The MG series adopts a multi-layer absorption design (2–3 layers). Depending on process requirements, different blower types can be selected to deliver the required pressure differential, making the machine suitable for higher exhaust-flow operations. The high-speed rotor induces high-g centrifugal force to break up droplets within the reactor, increasing interfacial area and enhancing gas & liquid mass-transfer efficiency.
Features
Low energy consumption
Compared with conventional packed/tray absorbers, the power demand of our machine is low, as low as ~1.4 kW /hr.High-efficiency primary absorber vessel
A patented atomization system effectively prevents moisture carryover into the exhaust stream.Baffle/grating architecture
The baffle (or grid) design improves gas–liquid mass-transfer efficiency.Environment
On-site CO₂ assessment
Contact us to evaluate your facility and CO₂-reduction needs.Process versatility
Supports absorption/desorption, dewatering, and high-efficiency material mixing.GHG capture machine specs
| SERIES | Airflow Rate | Liquid Flow Rate | Motor | Inlet Pipe Diameter | Housing | Impeller & Casing | Occupied Volume |
|---|---|---|---|---|---|---|---|
| M3/HR | M3/HR | KW | Inch | MM | MM (clearance) | M | |
| HG-150 | 150 | 0.5~0.8 | 0.375 | 3" | 350 | 55 | W 1.2 * L 1.2 * H 1.6 |
| HG-500 | 500 | 0.5~1.2 | 0.75 | 4" | 450 | 80 | W 1.5 * L 1.5 * H 1.6 |
| HG-1000 | 1000 | 0.5~1.8 | 1.5 | 5" | 550 | 105 | W 1.8 * L 1.8 * H 1.8 |
| HG-1500 | 1500 | 0.5~2 | 2.25 | 6" | 650 | 130 | W 1.8 * L 1.8 * H 1.8 |
| HG-2000 | 2000 | 0.7~2.5 | 2.25 | 8" | 750 | 155 | W 2 * L 2 * H 1.8 |
| HG-3000 | 3000 | 0.7~3.2 | 3.75 | 10" | 1000 | 255 | W 2.4 * L 2.4 * H 2 |
| HG-5000 | 5000 | 0.7~5.5 | 5.6 | 12" | 1300 | 380 | W 2.5 * L 2.8 * H 2 |
| HG-10000 | 10000 | 1~7 | 7.5 | 22" | 1800 | 500 | W 2.5 * L 2.8 * H 2 |
| HG-15000 | 15000 | 1~10 | 11.25 | 24" | 2200 | 575 | W 3 * L 3.8 * H 2 |
| HG-20000 | 20000 | 1~12 | 15 | 28" | 2500 | 600 | W 3.2 * L 4 * H 2.2 |
| HG-30000 | 30000 | 1~15 | 18.75 | 36" | 2800 | 675 | W 3.4 * L 4 * H 2.5 |
Scroll horizontally to see more
